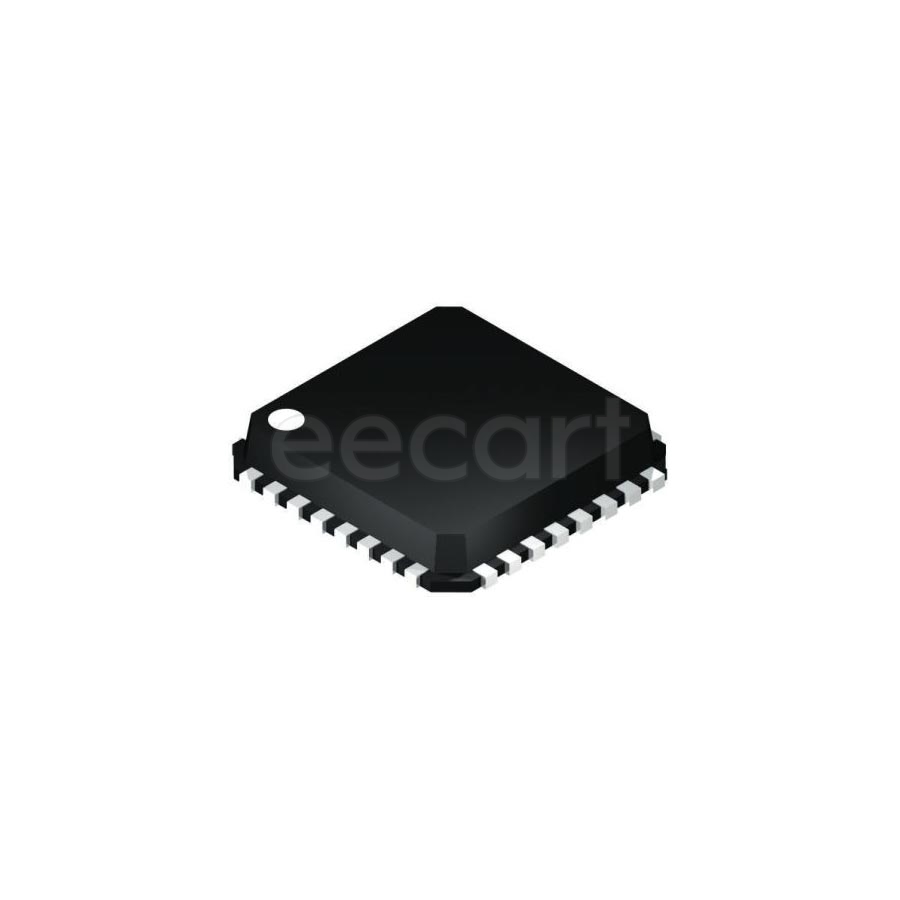

AD9106BCPZ
Manufacturer:
Analog Devices
Mfr.Part #:
AD9106BCPZ
Datasheet:
Description:
Digital to Analog Converters (DACs) LFCSP-32 SMD/SMT number of channels:4 number of bits:12 Number of D/A Converters:4
| Parameter | Value |
|---|---|
| Length | 5.1 mm |
| Width | 5.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| Height | 750 µm |
| Packaging | Tray |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| Polarity | Bipolar, Unipolar |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 180 MHz |
| Interface | SPI, Serial |
| Operating Supply Voltage | 3.3 V |
| Output Type | Current Buffered |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 315 mW |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.7 V |
| Power Dissipation | 315 mW |
| Number of Channels | 4 |
| Number of Bits | 12 |
| Operating Supply Current | 89 mA |
| Supply Type | Analog, Digital |
| Number of DAC Channels | 4 |
| Sampling Rate | 180 Msps |
| Integral Nonlinearity (INL) | 0.5 LSB |
| Number of Converters | 4 |
| Settling Time | 31.2 ns |
| Resolution | 1.5 B |
| Number of D/A Converters | 4 |
| Conversion Rate | 180 Msps |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 months ago) |
| Differential Output | Yes |
| Reference Type | External, Internal |
| Interface Type(Data Interface) | SPI |
| Max Digital Supply Voltage | 3.6 V |
| Min Digital Supply Voltage | 1.7 V |
| Analog Supply Voltage | 1.7 V to 3.6 V |
